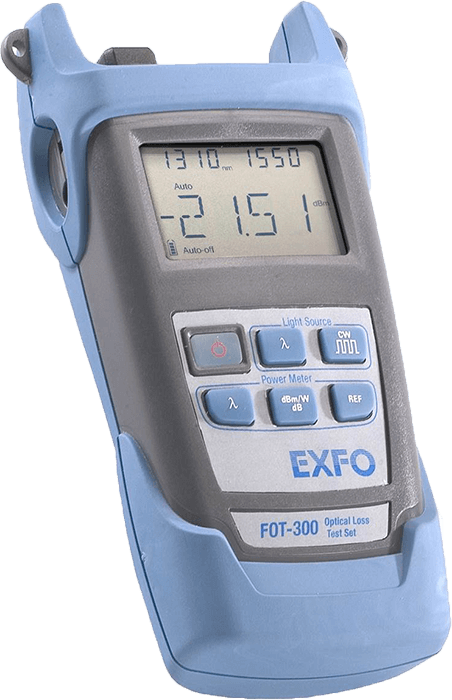

Highly optimized OLTS with integrated power meter port and up to 3 single-mode light sources or 2 multimode light sources on one port
260 hours of endurance
Three-year warranty and recommended calibration intervals significantly reduce cost of ownership
Ergonomic, eye-catching handheld housing
Automatic wavelength recognition
Long-range reference
Suitable for FTTx.
1. Power meter parameters

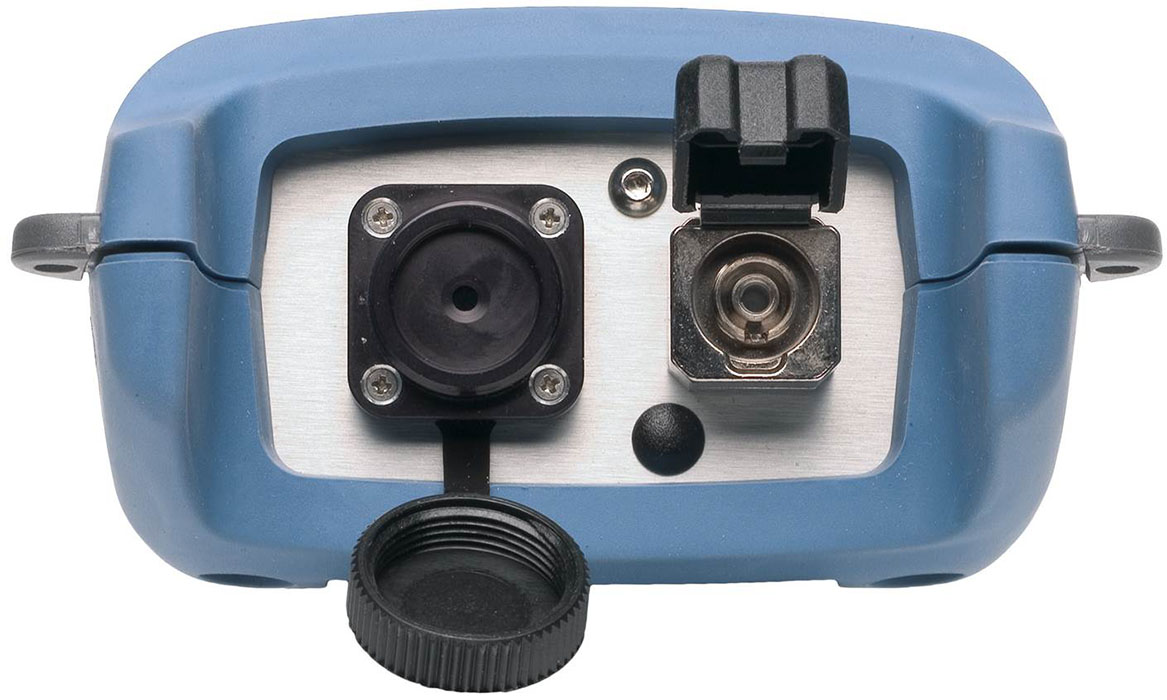

Power meter port: Ge GeX
Power Range (dBm): 10 to –60 26 to –50
Display Range (dBm): down to –65 down to –50
Number of calibration wavelengths 10 10
Power Uncertainty: ± 5% ± 1 nW ± 5% ± 10 nW
Resolution (dB): 0.01
Display unit: dB/dBm/W
Automatic Wavelength Recognition: Yes
Tone Detection (Hz): 270, 1 k, 2 k
Battery life (hours): 260
2. Light source parameters
Center wavelength (nm): 1310 ± 20 1550 ± 20 850 ± 25 1300 ± 50/–10
Spectral Width (nm): ≤ 5 50/135
Output Power (dBm): ≥ 1/≥ 1 ≥ –20/≥ –20 (62.5/125 mm)
Power Stability (dB): 8 hours ± 0.10
Battery life (hours): 120
Automatic Wavelength Identification: Yes
Tone Generation (Hz): 270, 1 k, 2 k
