1. Support a wide range of test frequencies, 9kHz-6000MHz, can cover most of the application frequency band
2. Industry-leading measurement sensitivity typical value -166dBm/Hz
3. Frequency accuracy: ± 1ppm
4. Third-order cutoff point (IP3): +15dBm
5. Provide API interface under androids, support secondary development

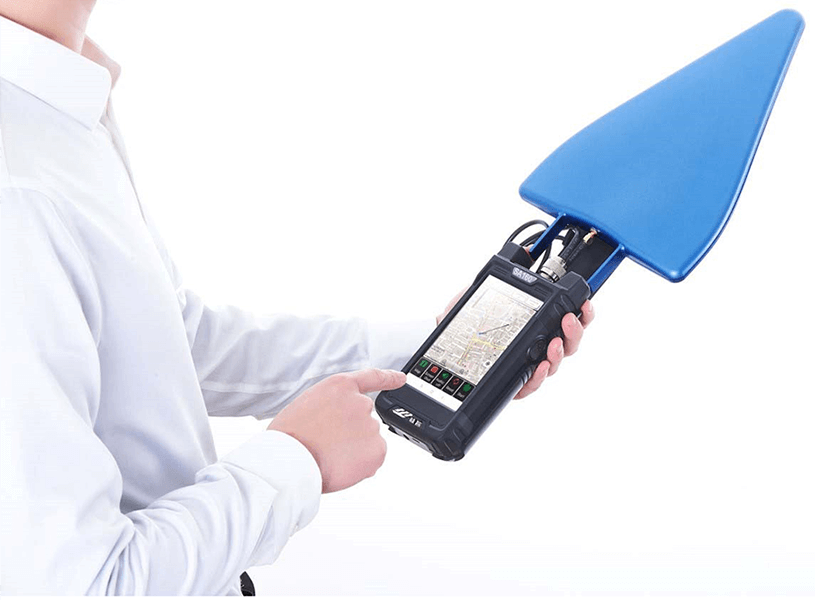

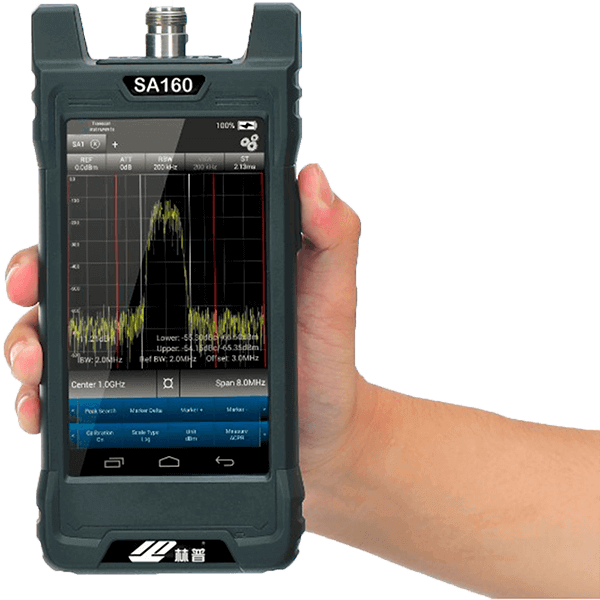

1. Handheld spectrum analyzer based on androids system, the operation of the instrument can be so simple
2. Efficient human-computer interaction, finger up and down to quickly adjust the reference level, left and right slide to change the starting frequency, double-click the frequency scale to find the nearest peak and can be configured at the same time 4 test tasks, set different parameters

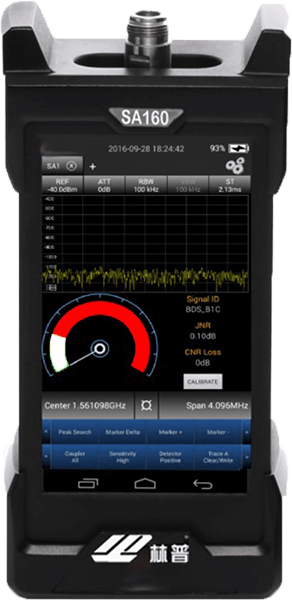

3. With clear frequency test, frequency verification, model correction test, digital signal demodulation, AOA map interference positioning and other special functions
4. Ultra-long battery life, more than 5 hours of continuous use
5. Superior portability, product weight 0.9kg, can be controlled with one hand
1.Electromagnetic environment environmental assessment of commercial base stations/stations
2.Radio monitoring of specific areas
3.Detection of room division system
4.Interference caused by faulty electronic equipment
5. Monitoring the power of legal transmitters in specified frequency bands
6. Base station stand-alone index testing including: RF output power, occupied bandwidth, frequency error, adjacent channel rejection ratio ACLR, etc.
7. Construction and maintenance of transmitting systems
