1. Support a wide range of test frequencies, 1MHz-6000MHz, can cover most of the application frequency band
2. Fast measurement speed Measurement speed up to 1ms/point, you can instantly get the measurement results
3. High frequency resolution of 1kHz, support 3201 data points simultaneously scanning, very high frequency accuracy: 2.5×10-6
4. Long fault locations distance, the maximum measurement distance of 1500m, long-distance cable system fault detection tool

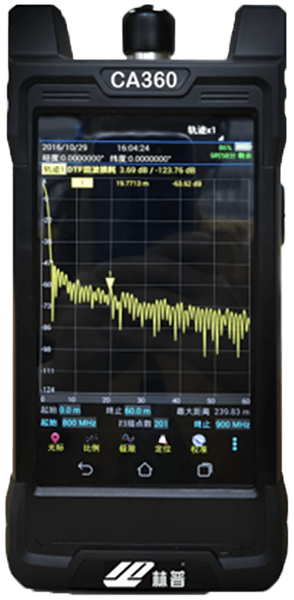

5. HD color LCD screen, visible in direct sunlight, typical field application instrument
1. With cable loss measurement, VSWR measurement (VSWR), return loss measurement (RETURN LOSS), fault locations VSWR measurement (DTF VSWR), fault locations return loss (DTF RETURN LOSS) measurement
2. Using androids smart operating system as the instrument platform, simple and easy to use interface, built-in large storage capacity, built-in GPS function to record test locations information, to achieve the true meaning of "integrated" test
3. With CA360 tool software on the PC side to support playback and analysis of the test curve
4. Strong endurance, built-in battery life of more than 10 hours
5. Compact size, weighing only 0.9kg, supports single handheld operation, easy to carry
1.Daily maintenance and acceptance of RF units and cables of base stations/stations
2.Leaky cable and antenna fault locations
3.Cable production inspection
4.Semiconductor production verification
